EIZO MS236WT Touch Screen

23" | 2 Megapixels| Color IPS
Smooth and Detailed Handwriting Input with DICOM Preset Mode for Displaying Medical Records.
Screen Size
23"
Resolution
1920 x 1080
Brightness
260 cd/m²
Contrast Ratio
1000:1
Ingress Protection
IP20
Warranty
3 Years
Brochures & Downloads

Smooth and Detailed Handwriting with Stylus Pen

The MS236WT features projected capacitive touch technology which is more reliable compared to other touch technologies, allowing for drag and flick finger operations to be smooth. In addition to the supplied passive touch pen, the monitor also accepts input from commercially available active stylus pens, so small and detailed letters can easily be written into a medical record.

Write While Resting Against the Screen

The screen can detect up to 10 simultaneous touches so multiple people can easily operate a variety of applications. The monitor is equipped with palm rejection which allows you to rest your hand directly on the screen without causing any unintended touch input, so that you can focus on your writing.

Palm rejection minimum activation area is 2 x 2 cm.

Optimal Medical Image Viewing

The monitor features a DICOM preset mode whose grayscale tone is preset on the production line for optimum reviewing of medical images.

Comfortable-to-Use, Fully Flat Design

The fully flat surface provides a seamless touch experience to the edges of the screen. This makes swiping motions and scrolling easy. Furthermore dust and fingerprints can be wiped off, making cleaning a breeze.

High Durability

The touch screen has a non-scratch glass surface with a hardness of 5H. In addition, the monitor is guaranteed to endure up to 50 million touches, meaning that you can confidently use the monitor for a long time.

Touch Detection Control

Users can easily turn touch detection on or off by pushing the button conveniently located on the monitor's side. This helps to prevent unintended inputs when cleaning the monitor.

Quick Recovery Controls

Due to environmental factors such as electromagnetic noise, projective capacitive touch technology can malfunction. To combat this, the monitor is equipped with technology which adjusts the touch sensitivity to minimize incorrect touch response. This ensures that the screen maintains accurate touch interaction during use.


When installing for the first time, the bundled "TPOffset (software for adjusting touch panel sensitivity)" is necessary.

Dedicated Touch Panel Driver

In addition to Windows' standard touch panel driver, a dedicated touch panel driver is also available for use with multi-monitor configurations and touch panel sounds.


Compatible OS: Windows 10/ 8.1/ 7

Clear View from Any Angle

The MS236WT uses an LED-backlit IPS panel with wide viewing angles that minimizes color shift and contrast changes even when multiple people view the screen.

Flicker-Free Viewing

Due to the way brightness is controlled on LED backlights, a small number of people perceive flicker which causes eye fatigue. The MS236WT relieves eye fatigue by regulating brightness to make flicker unperceivable.

Various Input Terminals

The monitor is equipped with DisplayPort, DVI-D, and D-Sub inputs which are conveniently located on the side for easy access.

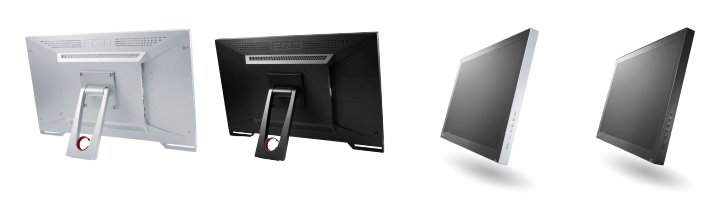

Model Variation

The MS236WT comes in a reclining stand and without stand variety, with gray or black cabinet colors. You can easily choose the ideal model for your environment.

Reclining Stand

The reclining stand provides flexible positioning to allow the monitor to rest flat on your desk when using a touch-pen, or to sit up when touching with your hand.

Customer Assurance with Medical Standards

The MS236WT meets various medical standards and safety/EMC standards for use in medical institutions.

3-Year Warranty

EIZO and its authorized distributors offer a three-year limited warranty.
